Blair Tourograph & Dry Plate Co.

Blair Camera Co.



The Standard Reversible Back Camera





Blair Tourograph & Dry Plate Co. Catalog, 1884, p. 15





8 x 10" Format, Single Swing Configuration.

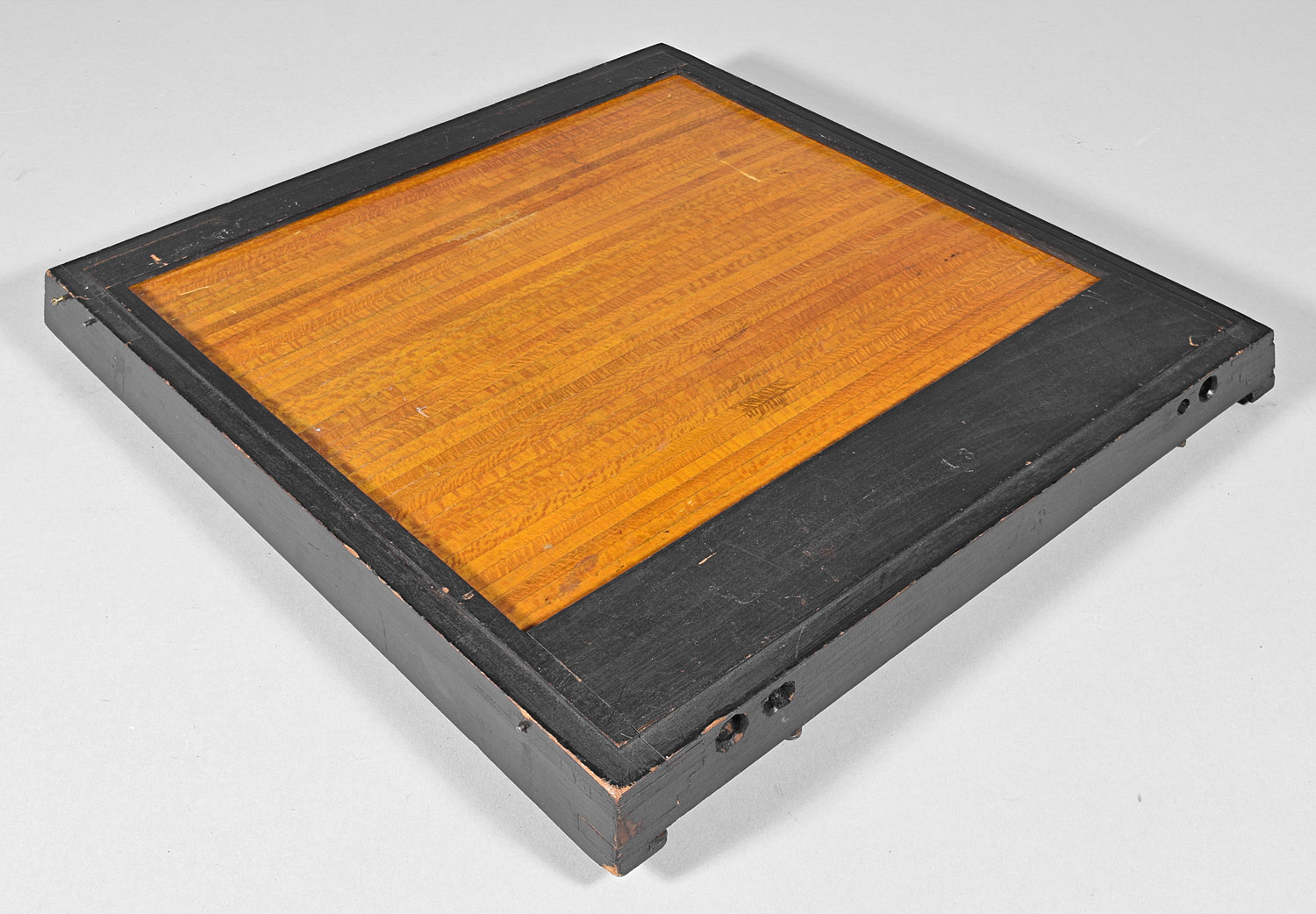

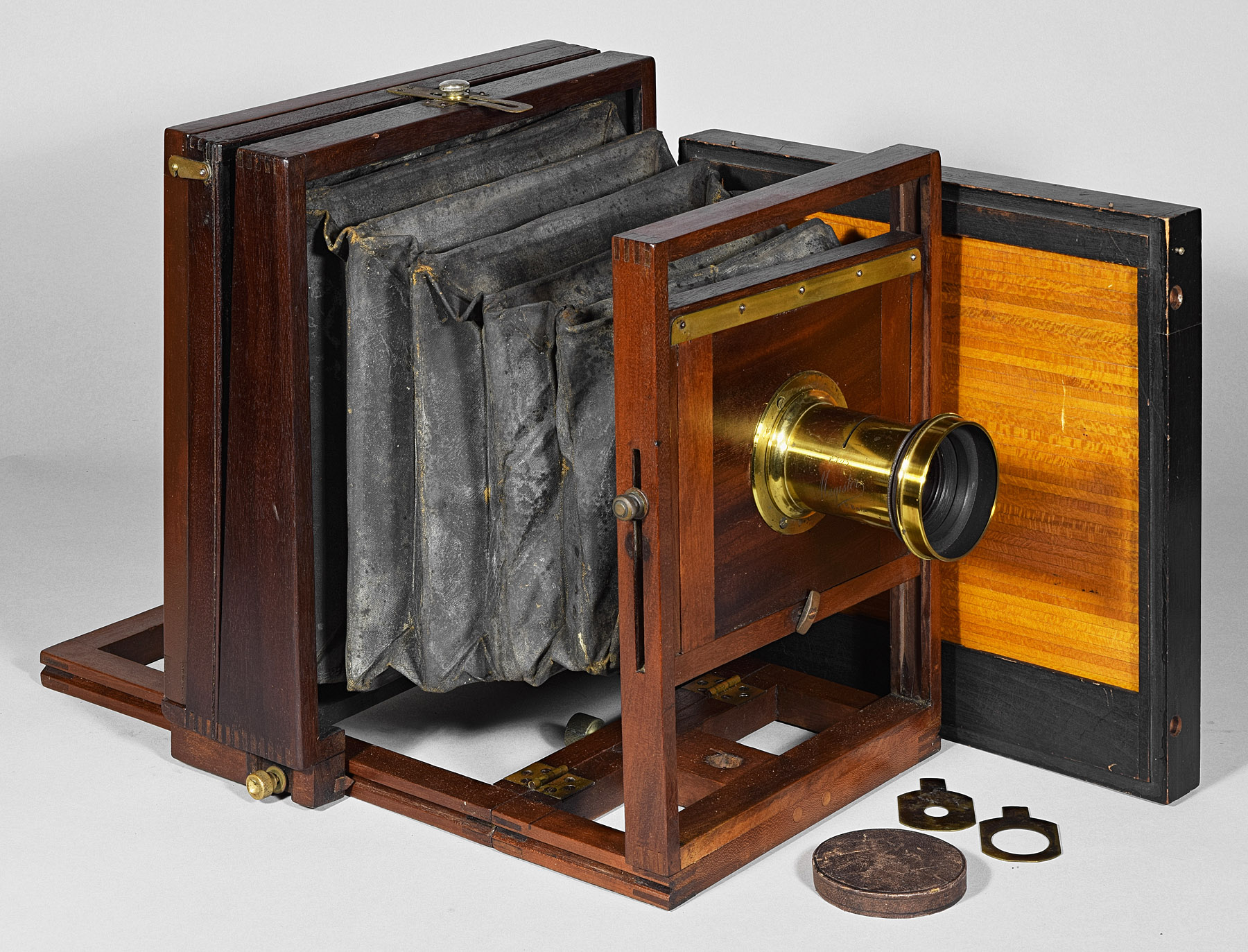

Included with the camera are four glass plate holders, a huge tripod top (but no legs), the Waterhouse stops set for the Darlot Hemispherique Rapide lens, a large, black cloth, and a canvas carrying case sufficient to store them all (which has no top, but the top is not discolored from age, indicating that it was some modern rather than antique moron who mislaid the top)

The case is marked very artfully on one of the short sides: "Lamson Studio / Portland, Maine".  There are, as of 08-31-2023, there are dozens of cabinet card photos marked "Lamson Studio, Portland, ME" for sale on eBay.  The principal in the studio was Joseph Harrison Lamson (1840-1901).
1414.blair.cam.co.standard.rb-8x10-b-750.jpg1414.blair.cam.co.standard.rb-8x10-c-750.jpg
1414.blair.cam.co.standard.rb-8x10-d-750.jpg1414.blair.cam.co.standard.rb-8x10-e-750.jpg

Perspective view from behind and right side.

Bottom

Top





Another 8 x 10" Format, Single Swing Configuration.
  This camera was missing its back when purchased; the current back is a replacement.
  It is identical to the other camera shown here except for its single swing construction rather than double swing.  A piece of trim is missing from the lower front of the front standard (which is still present on the other examples.

Perspective view from behind and right side.  The back is attached via holes at its bottom that fit pegs in the rear standard, as well as flip latches on each side (precisely the same in both examples on this page).  The back for this camera is a replacement, being made as a simple frame for a square ground glass. It is likely that the original back was like the back in the 2nd camera example - being rectangular and having a spring back, but that would have been harder to replicate.

Bottom

Top







6½x8½" Format, Double Swing Configuration
452.blair.standard.rb.single.swing-6x8b-750.jpg452.blair.standard.rb.single.swing-6x8c-750.jpg
452.blair.standard.rb.single.swing-6x8d-750.jpg452.blair.standard.rb.single.swing-6x8e-750.jpg

Date Introduced: - ; Years Manufactured: c.1884 - c.1886
Construction: rear focus via push-pull; single or double swing; reversing by removable back; three piece lens board
Materials: mahogany body; cherry base; black fabric bellows; brass hardware
Sizes Offered: 5x7; 5x8; 6½x8½; 8x10
Notes:

     This model was first only known as the double-swing example camera shown above.  It has no markings as to manufacturer or patents.  The large springs on its back are similar to the Blair Tremont.  Also, its small thumbscrews on the right side of the camera are similar to those found on the Blair Combination Camera.  The canvas carrying cases that came with the 8x10s are consistent with Blair construction, and two holders marked Blair.  For these reasons, it was called a Blair, but the model name was unknown and it was called Blair Unknown No. 3.

     Later, two Blair catalogs from 1884 were found, which describe a camera referred to as The Standard Reversible Back Camera.  Unfortunately, those catalogs do not have an engraving of The Standard Reversible Back Camera.  However, the basic features of the camera were described in one of the 1884 catalogs and an 1886 catalog:

"...provided with rising and falling front, double or single swing, made of thoroughly seasoned mahogany and cherry, varnished polished ... the movable portion for focusing being at the rear, our patent extension cannot be well applied to these Cameras."

     The above single and double swing examples fit the description exactly.  More convincing, however, is that the catalog description lists the size of lens boards that fit The Standard Reversible Back Camera.  For example, the size of the lens board for an 8x10 format The Standard Reversible Back Camera is 7½x 6" - the exact size of the lens board in the 8x10" format cameras above.  This size of lens board is not common, which makes the identification of LP452, LP1047 and LP1414 as The Standard Reversible Back Camera more defensible.  Oddly, none of the examples have a label, whereas most Blair cameras have.


References:
Untitled 8p. Catalog, The Blair Tourograph & Dry Plate Company, Boston, MA, undated, c.1884, un-numbered pages but appears to be p. 5
Blair Tourograph & Dry Plate Co. Catalog, 1884, p. 15
Photographic Apparatus Manufactured by The Blair Camera Company, Blair Camera Co. (Boston, MA), distributed by C.R. Selee (56 Bromfield St., Boston, MA), dated 1886, p. 10
