Sky Scraper Improved Variation 1.5, 8 x 10

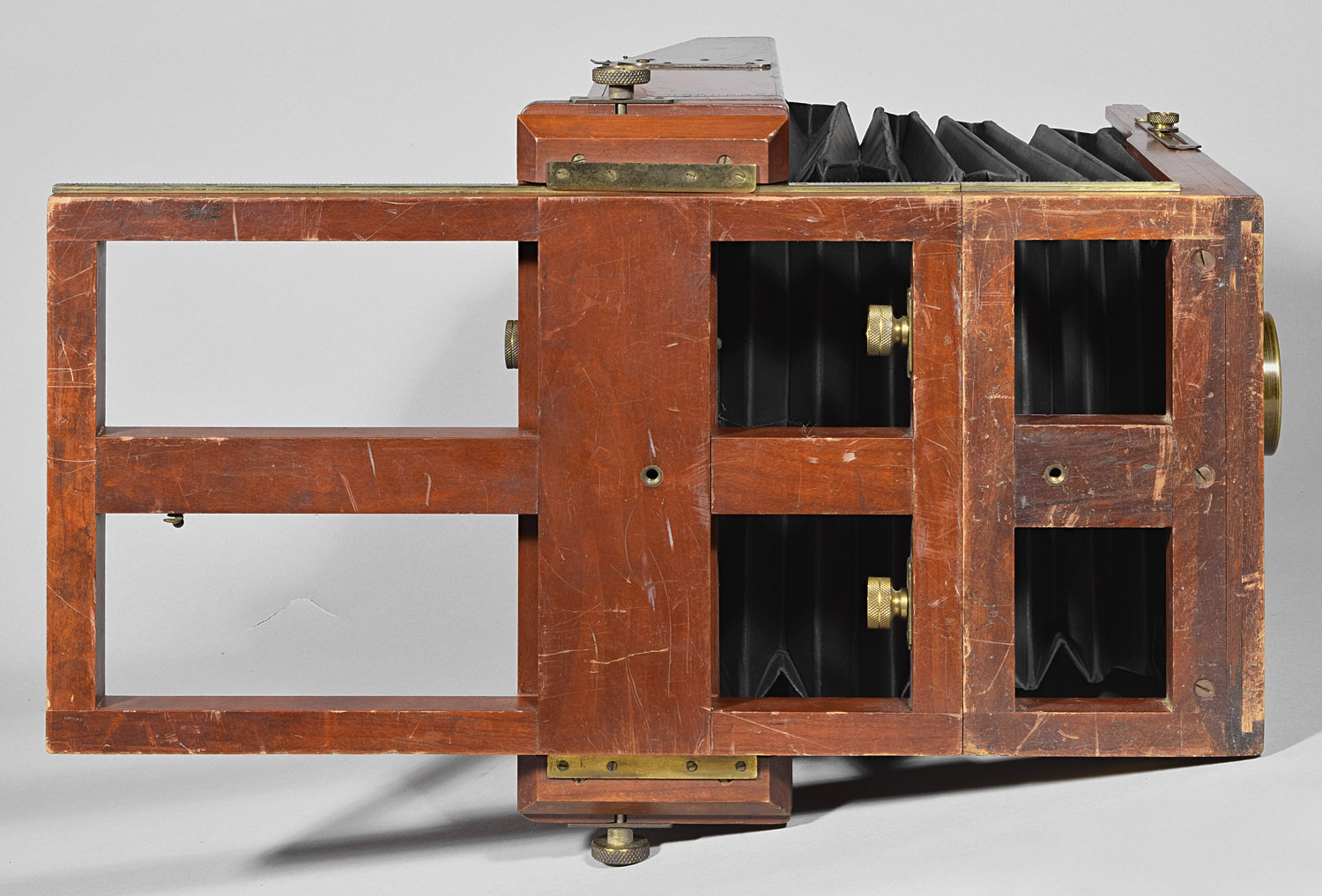

Bottom

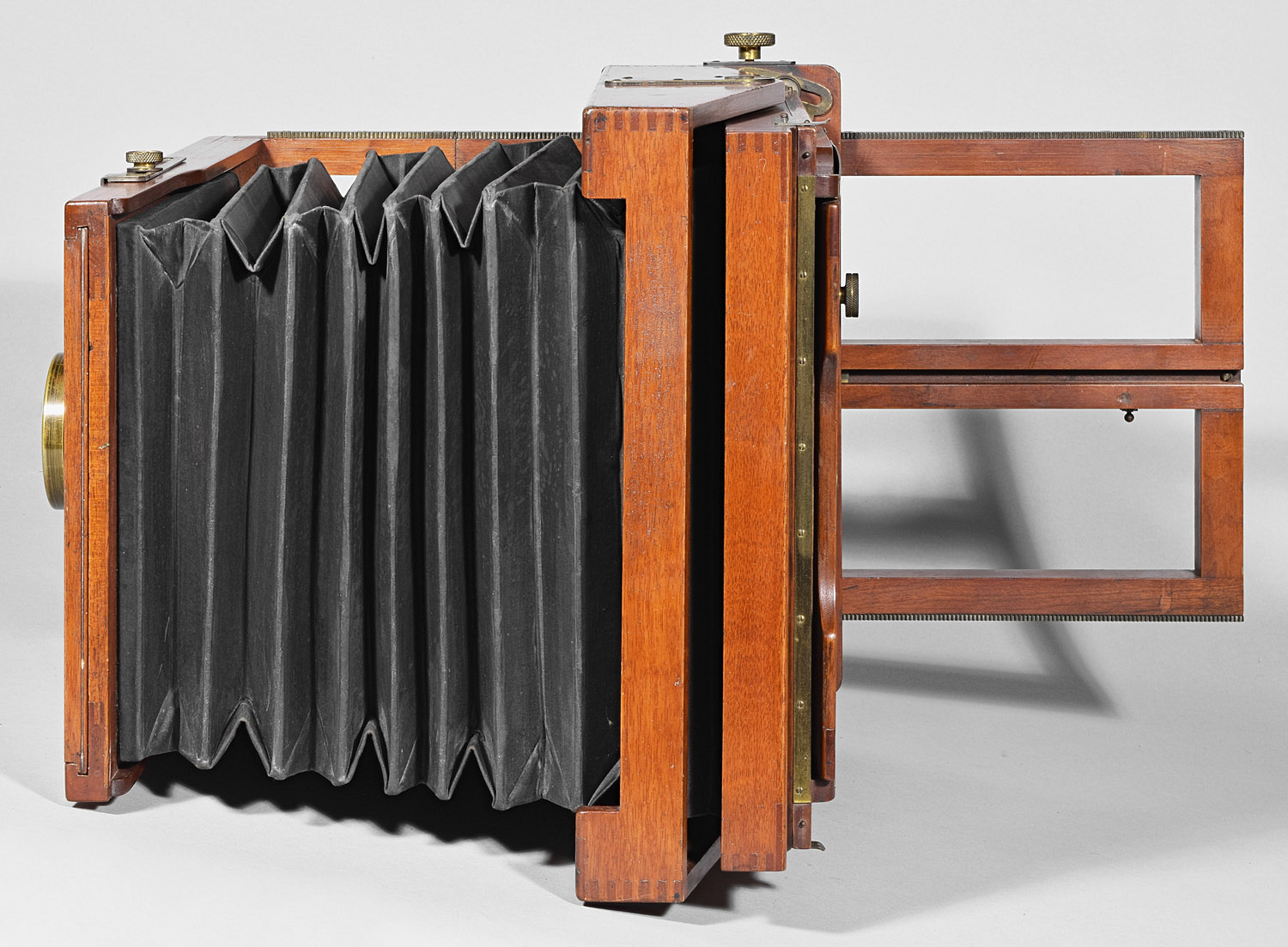

Top

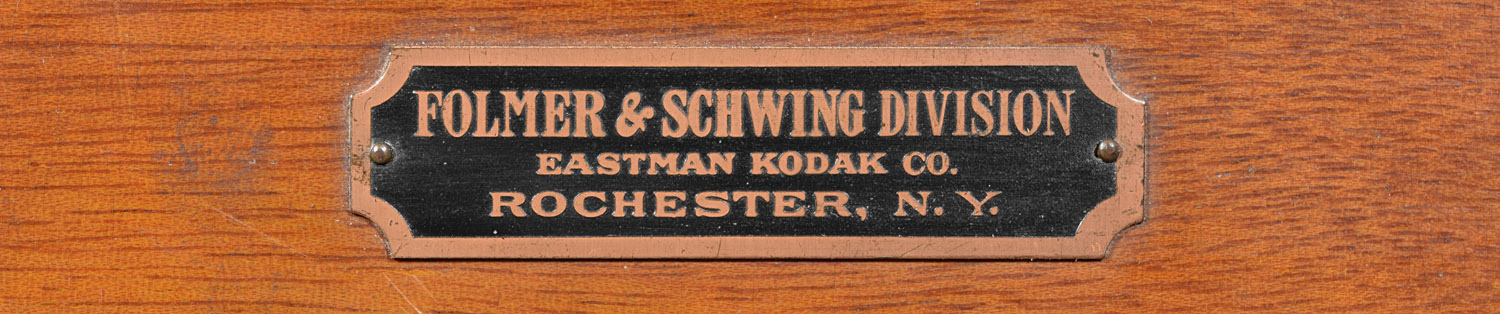

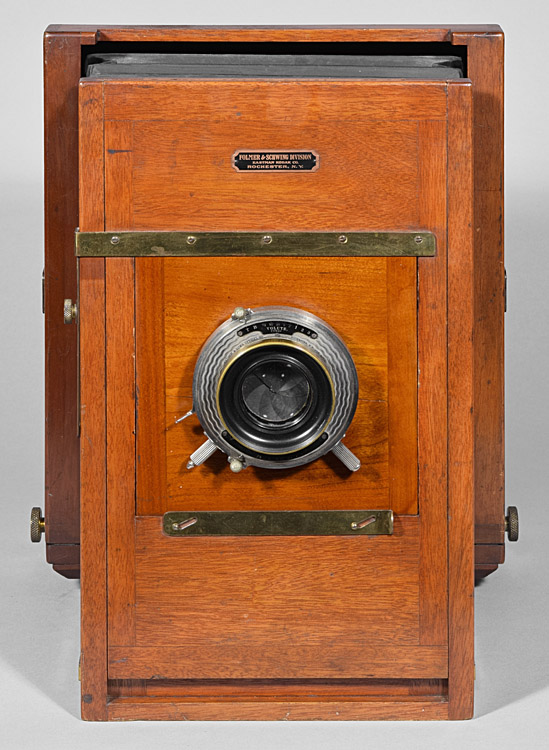

Label, metal, front standard above lens board:  "Folmer & Schwing Division / Eastman Kodak Co. / Rochester, N.Y."

Date Introduced: - ; Years Manufactured:  c. 1907-1917

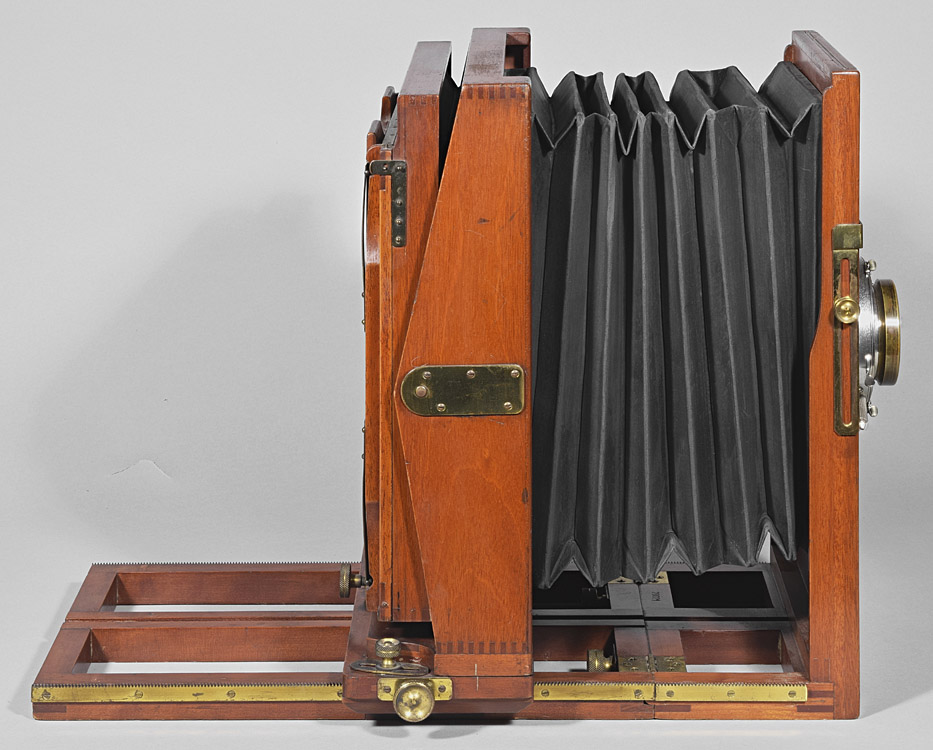

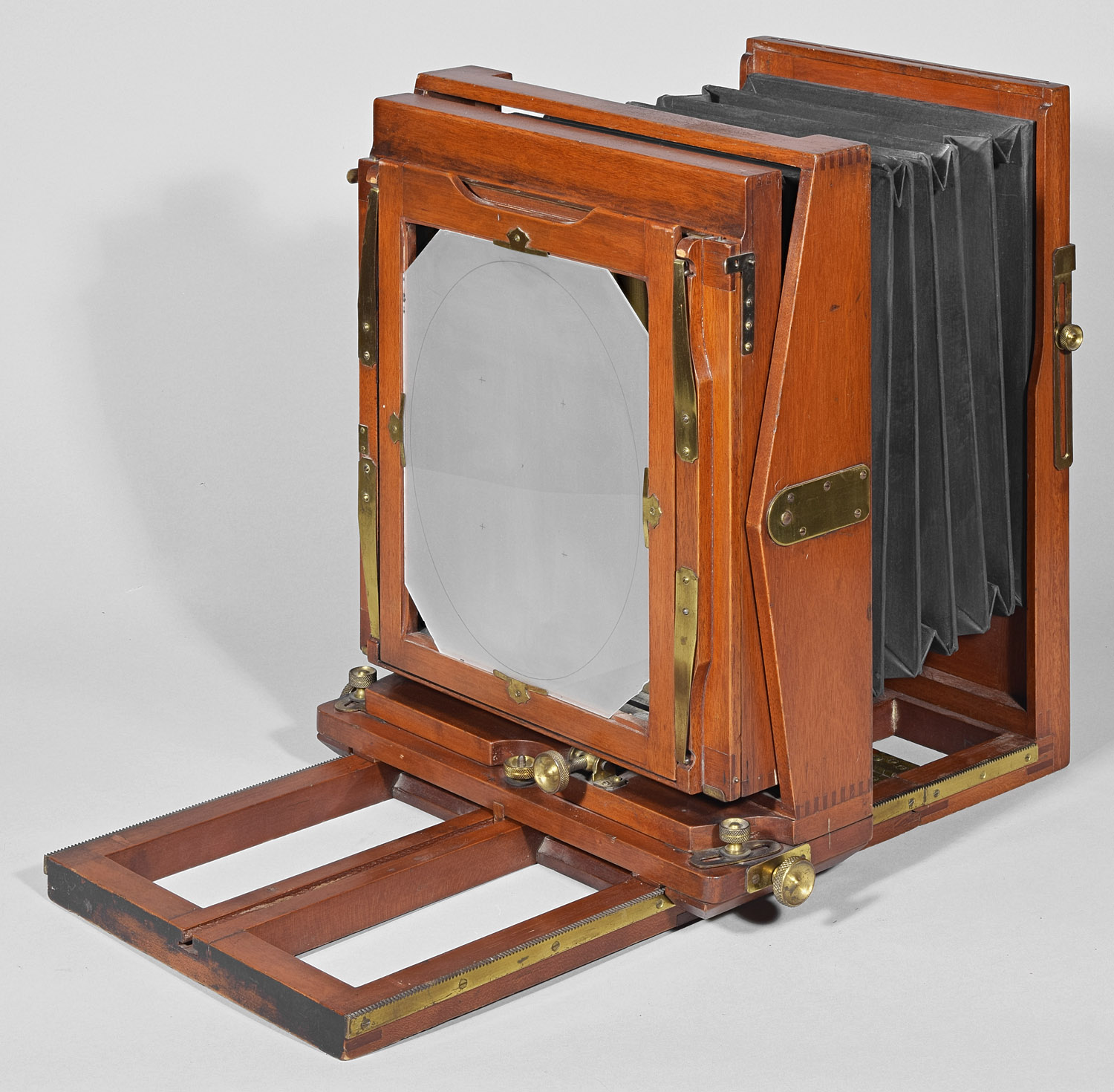

Construction: rear focus via rack and pinion (two gear tracks on sides of base rails);  reversing by removable back; double swing; three-piece lens board
Materials: mahogany body; cherry base; black fabric bellows; brass hardware
Sizes Offered: 8x10; 11x14; 14x17 and larger sizes(!) made to order
Notes:

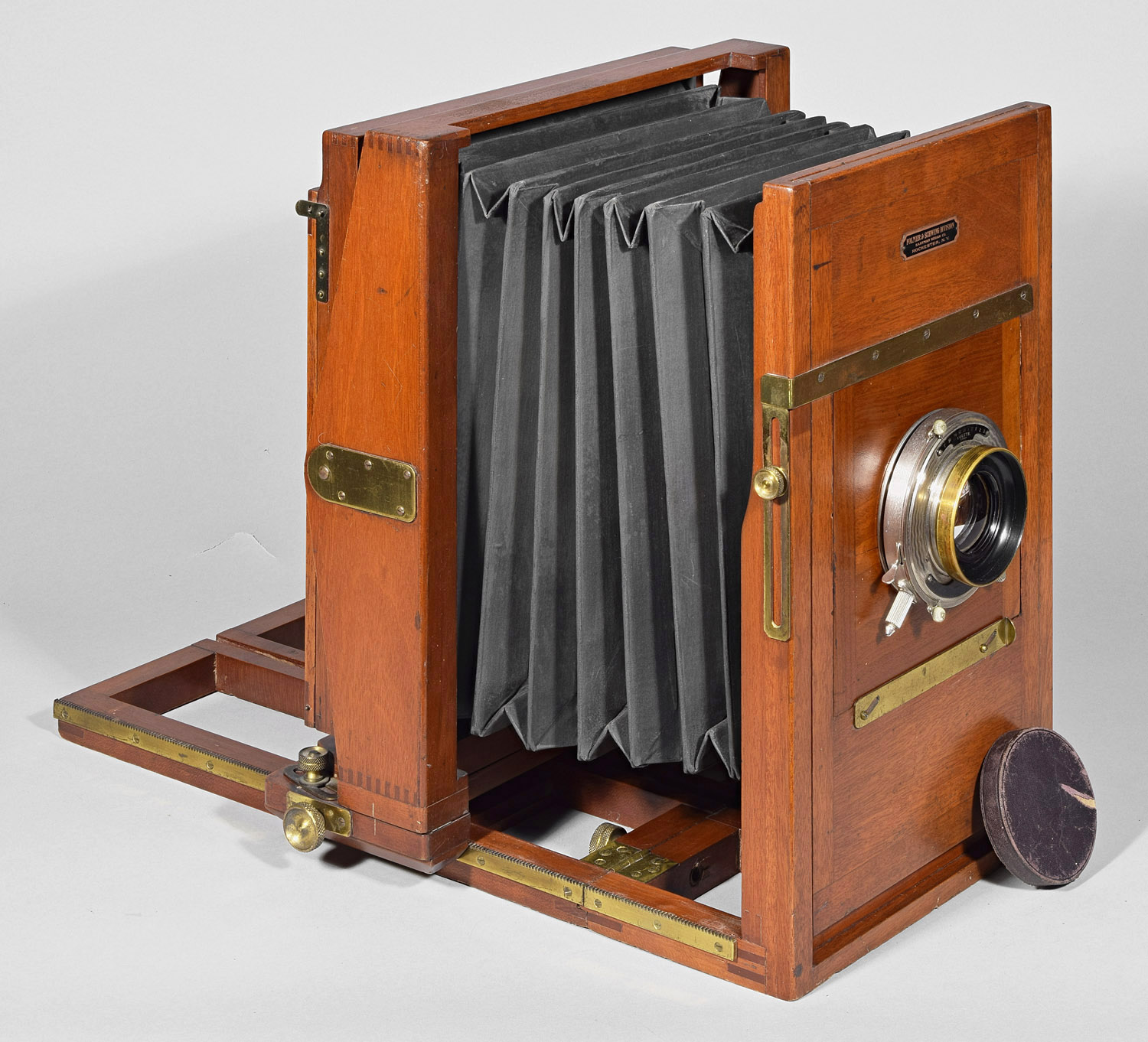

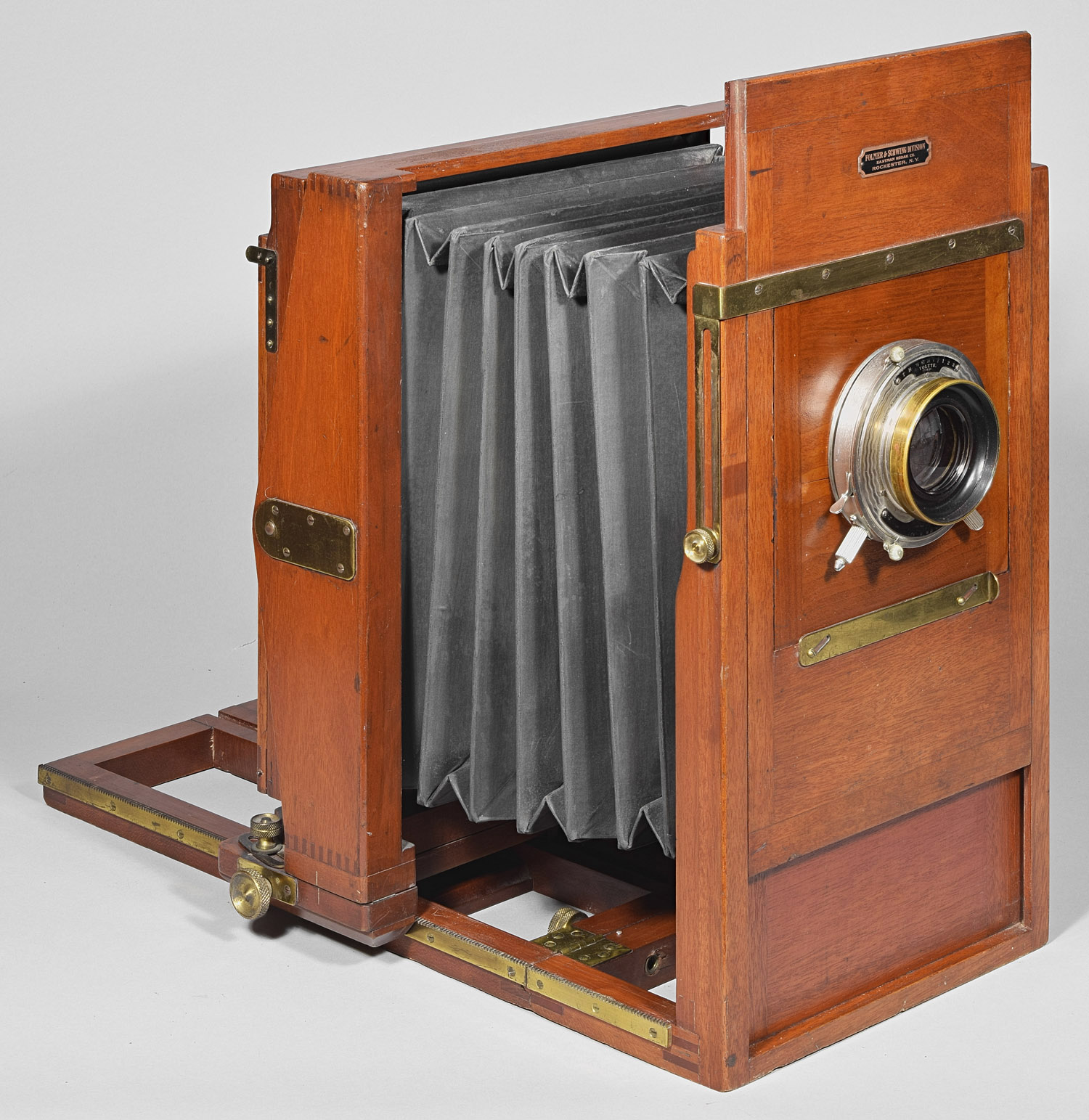

     The Sky Scraper was made for photographing tall buildings without tilting the camera back, the lens board has significantly greater rise than other cameras due to the tall front standard.  The improvements from the Sky Scraper Camera include gear focus instead of fine focusing screw, and a different vertical swing arrangement.

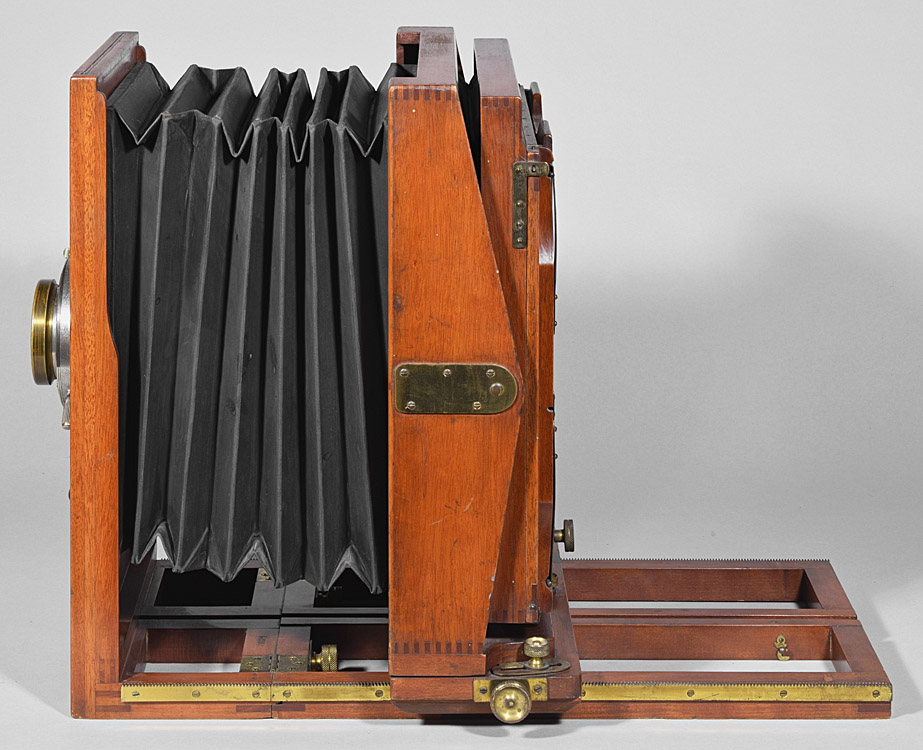

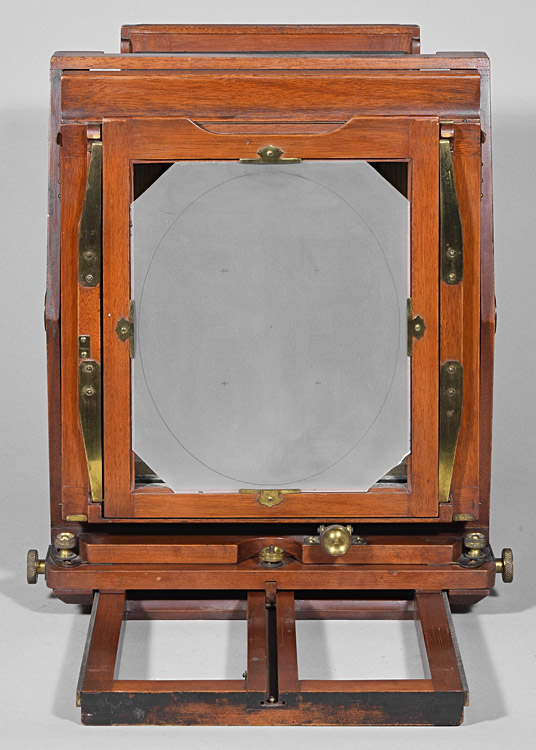

     The Sky Scraper Improved is seen in four configurations of rear standard vertical swing: Variation 1.0 has round center pivot hardware, Variation 1.2 has the round center pivot but also a round thumbscrew lock,  Variation 1.5 has large rectangular plate pivot center hardware, and Variation 2.0 retains a center pivot, but has large hardware anchored to the base of the rear standard instead of the relatively thin sides.

     Even though a Folmer & Schwing product, it also appeared in the c.1906 Century Professional Catalog referenced below as the Century Sky Scraper Improved.

References:
Andrew Lloyd catalog 1900.
Photographic Apparatus for the Professional, Century Camera Co. (Rochester, NY), undated c.1906, p. 16
Milwaukee Photo Materials Co. Catalogue No. 5, Milwaukee Photo Materials Co. (Milwaukee, WI), undated c.1907, p.52
Illustrated Catalogue of Photographic Outfits and Supplies, Sweet, Wallach & Co. (Chicago, IL) Catalog, 1908, p. 56
Catalogue of Professional Photographic Apparatus and Materials, Eastman Kodak Co. (Rochester, NY), 1909, pp.38-39
Descriptive Price List of Photographic Materials, George Murphy, Inc. (New York, NY), 1910-1911, pp. 47-48
Photographic Apparatus and Supplies Catalog No. 35, Sweet, Wallach & Co. (Chicago, IL), c. 1910, p. 57
Catalogue Photo Supplies, Milwaukee Photo Materials Co. (Milwaukee, WI), c.1910. p. 53
Catalogue of Eastman Professional Photographic Apparatus and Materials, Eastman Kodak Co. (Rochester, NY), c. 1911, p. 52-53
Number 30 Illustrated Catalogue of Photographic Outfits, Lenses and Supplies, Robey-French Co. (Boston, MA), c. 1915, p. 52
Illustrated Catalogue of Photographic Outfits and Supplies No. 38, Sweet, Wallach & Co. (Chicago, IL), c.1915, p.49
Cameras, Photographic Apparatus and Supplies, 11th Ed., Hirsch & Kaiser (San Francisco, CA), c. 1917, p. 30
