Rochester Optical Co.

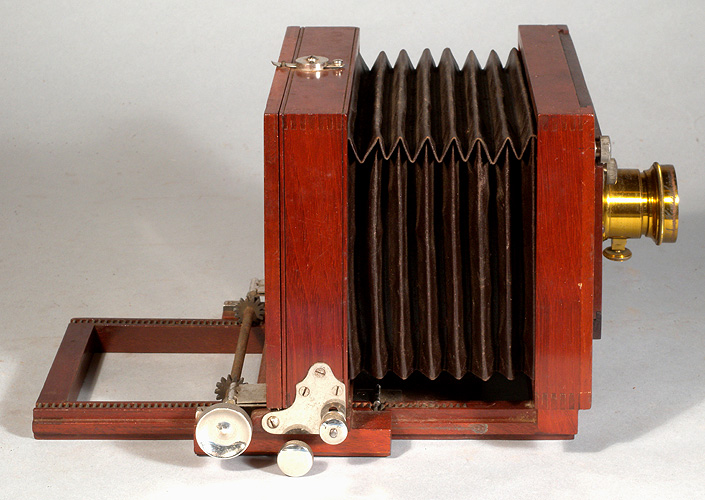

Commodore Camera

C.H. Codman Catalog, 1886, p. 9

4 x 5





Date Introduced: - ; Years Manufactured: c. 1885-1894
Construction: back focus, no or single swing, gears on top of base, reversing by two tripod mounts, wooden track guides
Materials: mahogany body, nickeled hardware, maroon fabric bellows
Sizes Offered: 4x5; 4�x6�; 5x8
Notes: similar to and the same price as the New Model Improved; in that it is a back focus, straight-bellows camera with rack and pinion focus via a knob behind the rear standard.  The difference is that the Commodore has a shifting  as well as rising lensboard arrangement.  All advertisements for the Commodore mention rack and pinion focusing.

References:
American Journal of Photography, March 1885, p. 9
Illustrated Catalogue of Photographic Apparatus Manufactured by the Rochester Optical Co., C.H. Codman & Co. (Boston, MA), June 1886, p. 9
