Anthony Catalog January 1895, p. 14
5 x 7" with Anthony's Telescopic Brass Bound Carrying
Case

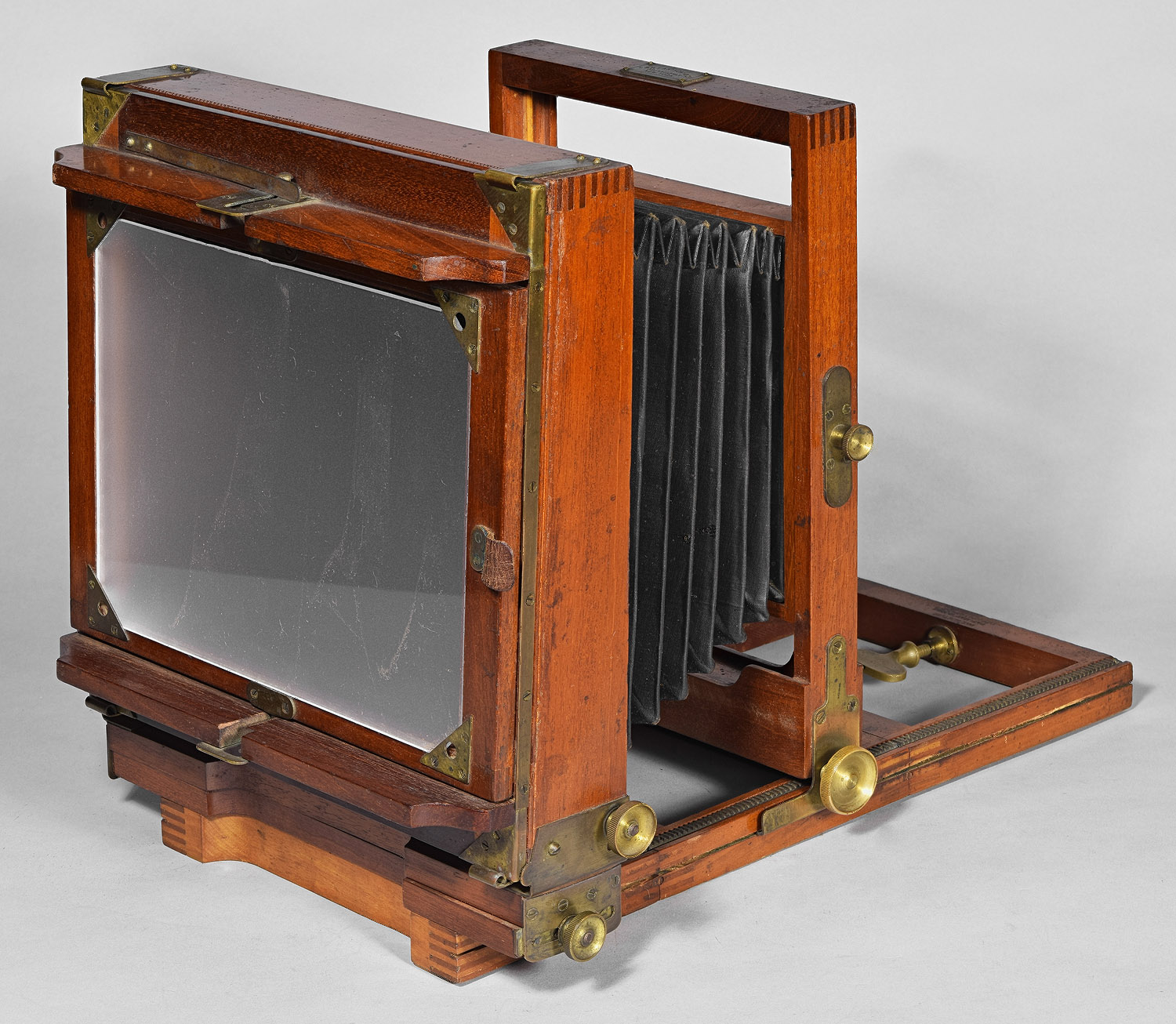

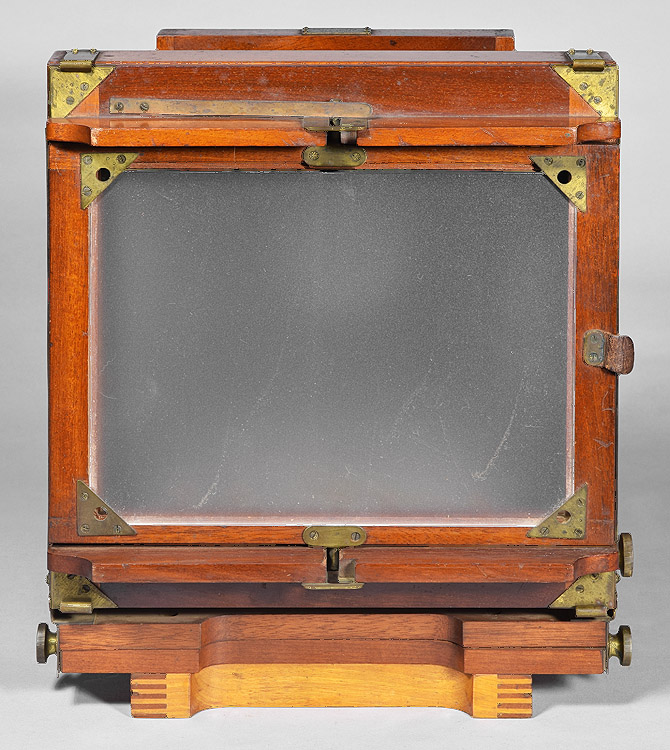

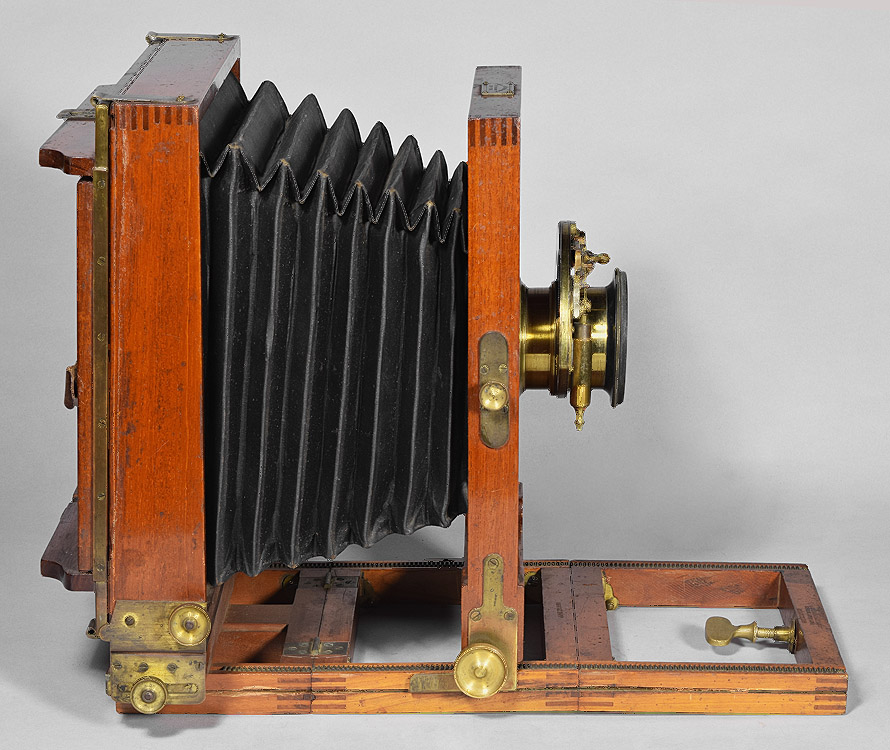

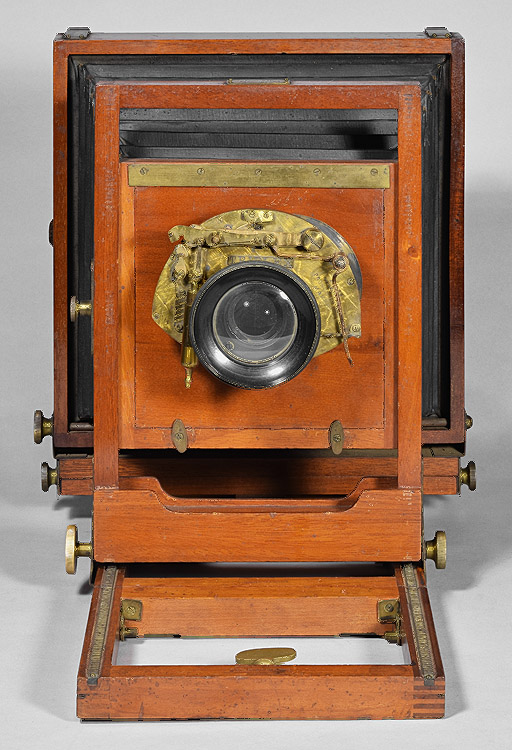

6½ x 8½" with Anthony's Telescopic Brass Bound
Carrying Case
Brass Label, Top of the Front Standard

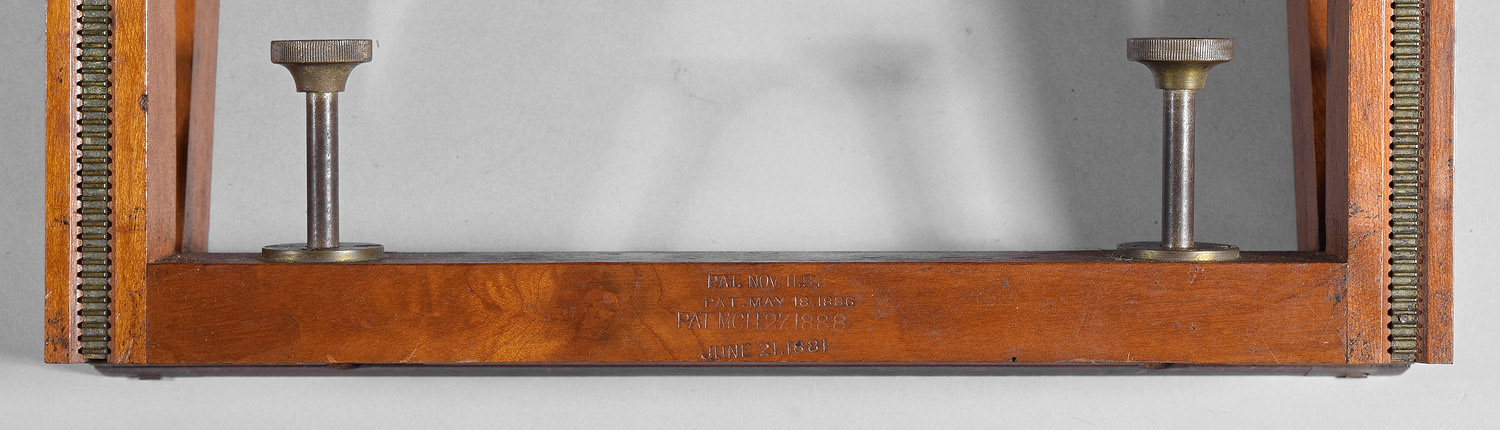

Patent Stamps, Front
End of Platform ("Pat. Nov. 11, 84", "Pat. May 18, 1886" and "Pat. Mch.
27, 1888"

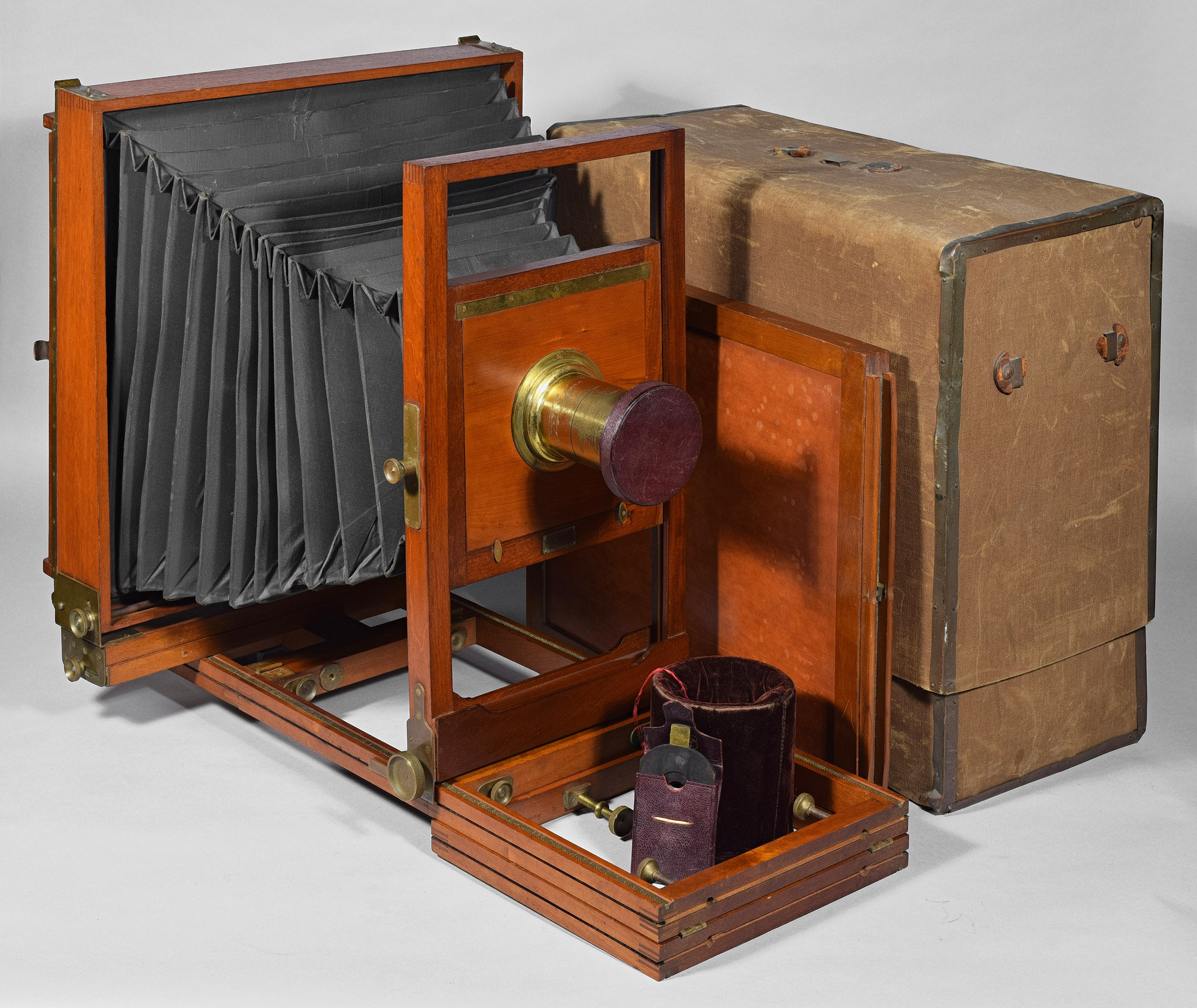

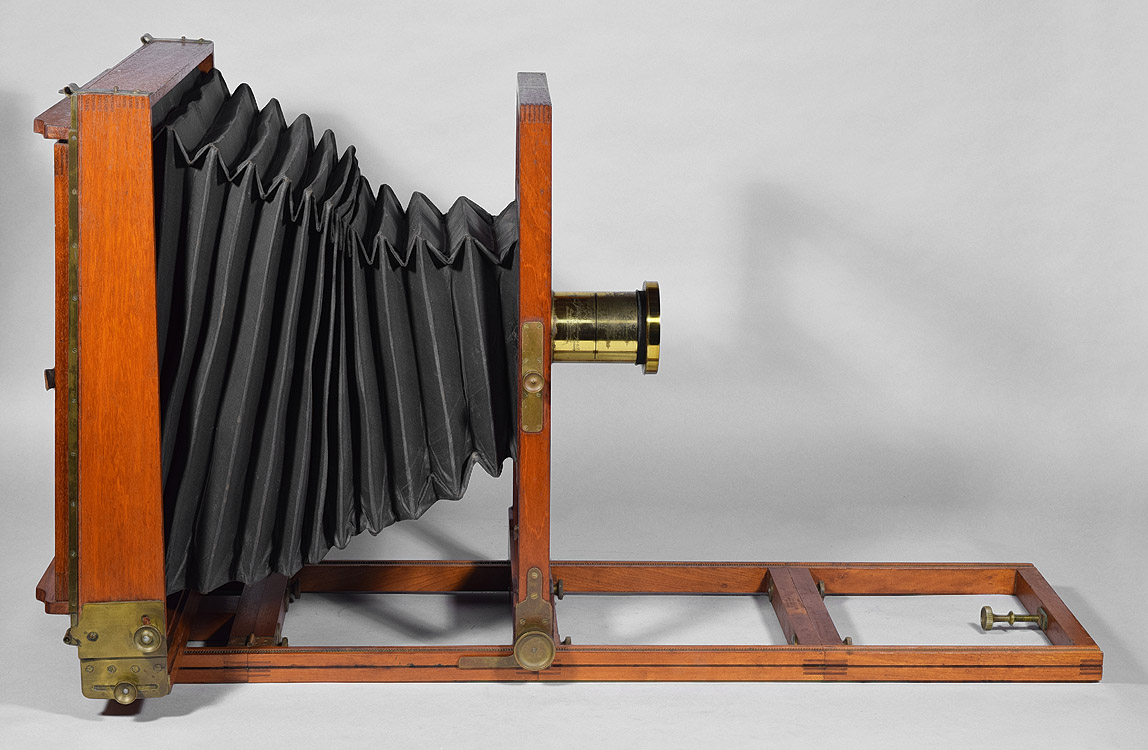

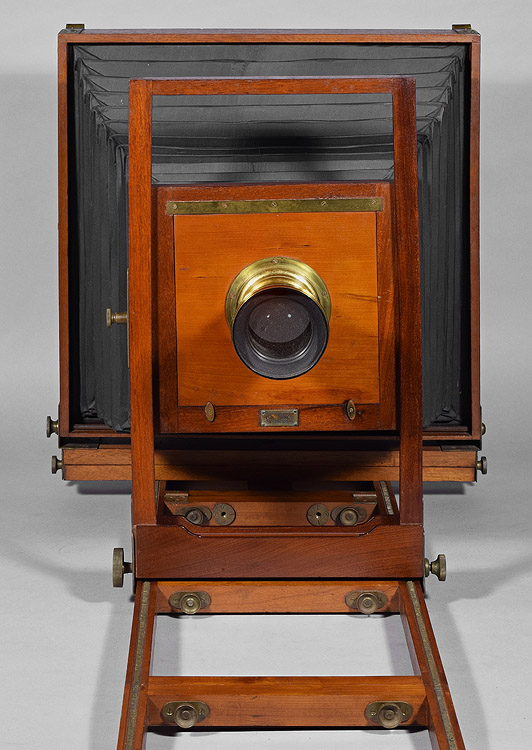

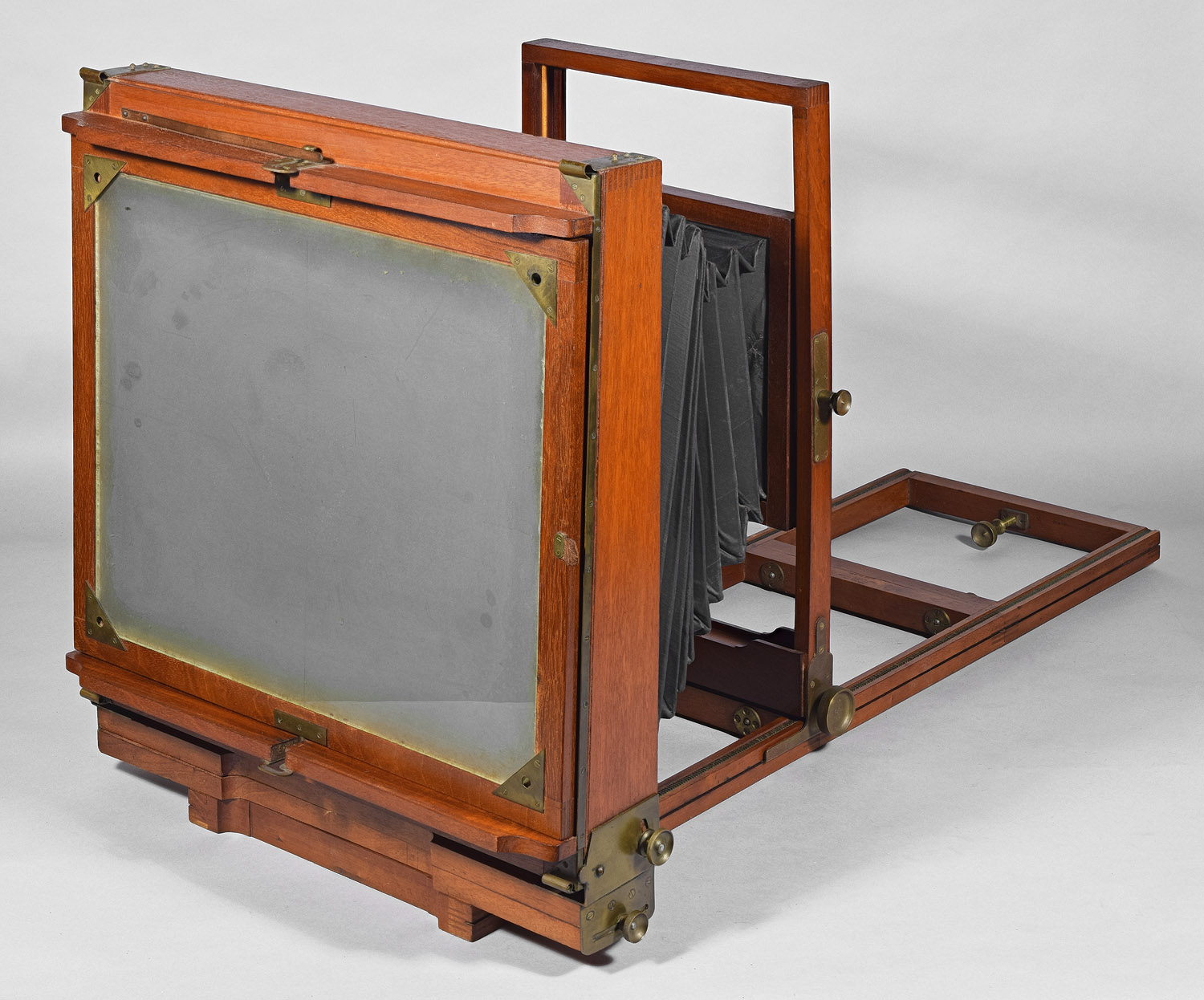

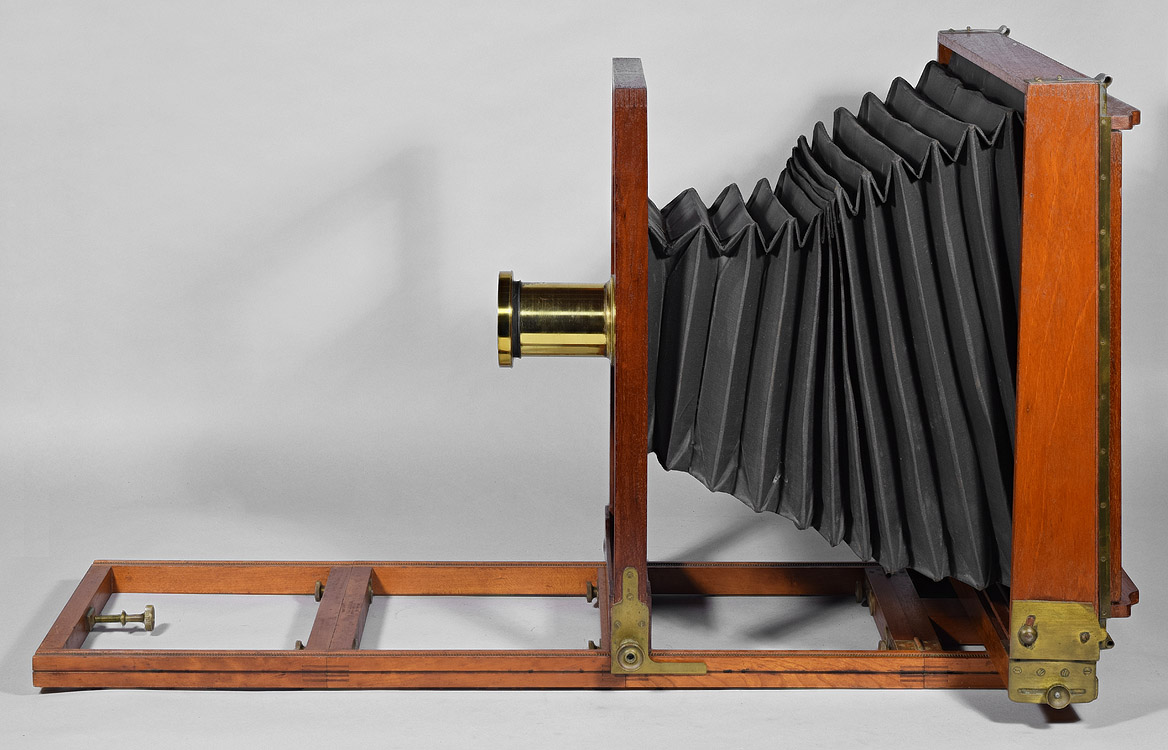

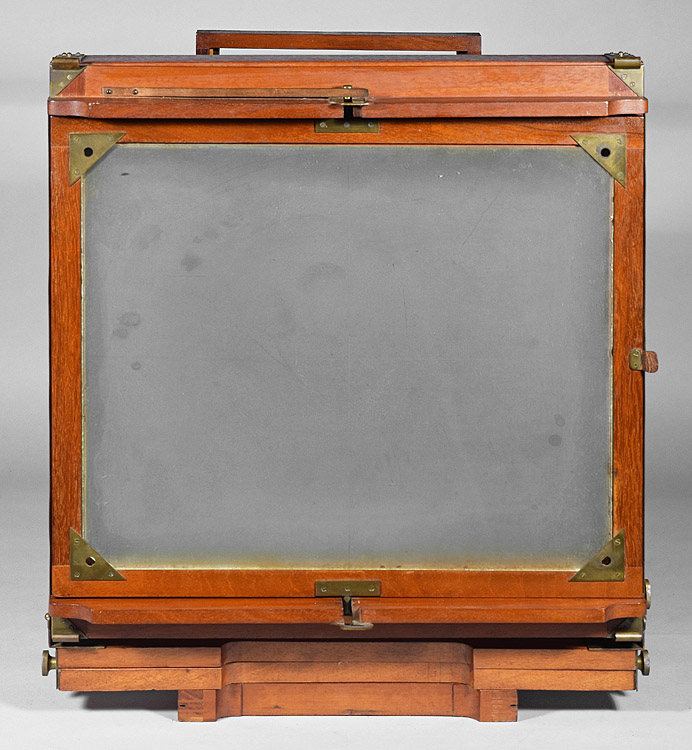

The massive 14 x 17" size with its Anthony's Telescopic Brass Bound Carrying
Case. Its lens is a J.H. Dallmeyer 15x12" rapid rectilinear-type
in a brass barrel. It has its original leather-covered lens cap
and its velvet bag that has kept it in almost mint condition. Its
packet of stops appear unused. It had little use undoubtedly
because of the trouble it takes to transport, set up, and use such a
huge camera. But huge cameras were made - see the
E.& H.T. Anthony 14x17"
Klauber Camera, and the
.
The end of the middle section of platform/base. The two
thumbscrews used to fasten the front section of platform/base onto the
middle section are in their storage position. For use, they would
be inserted through the front section (here, from the bottom direction)
and tightened. Date Introduced: 1889 ;
Years Manufactured: 1889
- c.1901
Carrying Case The
5x7" camera above has at one time had a 3¼" long label on its
top which has been replaced with an Anthony tag, yet the Anthony tag is
correct. Below is illustrated a an outrageously
sized 14x17 Normandie Variation 1. References:
Four stamps reference patent dates:
1) "Pat. Nov. 11, '84" (patent clamp hooks)
2) "Pat. May 18, 1886" (side-mounted
screw on rear standard for swing adjustment)
3) "Pat. Mch. 27, 1888 (spring
back and bellows support for Long Focus Novelette)
4) "June 21, 1881" (dry plate
holder)
Construction: front focus
via rack and pinion (two gear tracks on top of base rails);
double swing; reversing by removable back; plywood lens board;
French polish finish; hinged front extension
Materials: mahogany body; cherry base;
black fabric bellows; brass hardware
Sizes Offered: 5x7; 5x8; 6½x8½; 8x10;
10x12; 11x14 (in 1891 also 14x17)
Notes:
There are two variations
seen of the Normandie. The
Normandie
Variation
1 (1889-c.1901) differs
from
Normandie Variation 2
(at least c.1903 and probably later) in a
number of small details, the most obvious being that Variation 2
has nickeled hardware, a lower profile spring
back and leather bellows.
According to the Anthony catalogs
1888-1901 (all seen so far featuring the Normandie Variation 1),
the Normandie Variation 1 came with an Anthony telescopic
brass-bound canvas case. Sure enough, the Normandie Variation 1
cameras that came with a period case came with the Anthony brass bound
case. The 1903 Anthony catalog that describes the Normandie
Variation 2 refers to "our canvas carrying case", not mentioning
"brass-bound". And sure enough, the Normandie Variation 2
having a period case has a plain canvas box - no brass edges.
Not in The International Annual of Anthony's
Photographic Bulletin, Vol. I, July 1888, page 53 (summary of
Anthony current products).
Descriptive Catalogue and Price List of
Photographic Apparatus, E. &
H. T. Anthony & Co.
(New York, NY), later 1889
(not in the January 1889 catalog), p. 34
The International Annual of Anthony's Photographic Bulletin,
Vol. II, 1889,
W. J. Harrison and A. H. Elliot, eds., E. & H. T. Anthony & Co. (New
York, NY),
ads p. 53
Illustrated Catalogue of Photographic Equipments
and Materials for Amateurs, E. & H.T. Anthony & Co. (New York, NY),
January 1890, pp.13-14
The International Annual of Anthony's
Photographic Bulletin Vol. III 1890-1891,
W. J. Harrison and A. H. Elliot, eds., E. & H. T. Anthony & Co. (New
York, NY), ads p. 101
Illustrated Catalogue of Photographic Equipments
and Materials for Amateurs, E. & H.T. Anthony & Co. (New York, NY),
January 1891, p. 15-16
Descriptive Catalogue and Price List of Photographic Apparatus,
E. & H.T. Anthony & Co. (New York, NY), November 1893, p.44
The International Annual Anthony's Photographic Bulletin Vol.
VI 1894,
edited by A.H. Elliott and F.P. Smith, E. & H.
T. Anthony & Co. (New York, NY), ads p. 21
(engraving)
The International Annual of Anthony's Photographic Bulletin Vol. VI
1894, edited by A.H. Elliott and F.P. Smith, E. & H.T. Anthony & Co.
(New York, NY), 1893, p. 71 (list of view and other cameras)
Illustrated Catalogue of Photographic Equipments and Materials for
Amateurs,
E. & H.T. Anthony & Co. (New York, NY), September, 1894, p. 19-20
Wilson's Cyclopaedic Photography, Edward L. Wilson (New York,
NY), copyright 1894, p. 462
Illustrated Catalogue of Photographic Equipments and Materials for
Amateurs, E. & H.T. Anthony & Co. (New York, NY),
January 1895, p. 19-20
Illustrated Catalogue of Photographic Equipments and Materials for
Amateurs, E. & H.T. Anthony & Co. (New York, NY), December, 1895, p.
19-20
The International Annual of Anthony's
Photographic Bulletin Vol. VII 1895,E.
& H.T. Anthony & Co. (New York, NY), 1894, ads p.
7, 99
Illustrated Catalogue of Photographic Equipments and Materials for
Amateurs, E. & H.T. Anthony & Co. (New York, NY), August, 1896, p.
18-19
The International Annual of Anthony's
Photographic Bulletin Vol. X 1897,E.
& H.T. Anthony & Co. (New York, NY), 1896, p. 56
Illustrated Catalogue of Photographic Materials,
Thos. H. McCollin & Co. (Philadelphia, PA)
undated, c. 1897, p. 44
Illustrated Catalogue of Photographic Equipments
and Materials for Amateurs, E. & H.T. Anthony & Co. (New York, NY),
February, 1898, p. 12-13
Illustrated Catalogue of Photographic Equipments
and Materials for Amateurs, E. & H.T. Anthony & Co. (New York, NY),
November, 1898, p. 11-12
Descriptive Catalogue and Price List of Photographic Apparatus
(Professional Catalog), E. & H.T. Anthony & Co., New York, NY, July
1899, p. 41-42
Illustrated Catalogue of Photographic Equipments
and Materials for Amateurs, E. & H.T. Anthony & Co. (New York, NY),
August, 1899, p. 25
Illustrated Catalogue of Photographic Equipments
and Materials for Amateurs, E. & H.T. Anthony & Co. (New York, NY),
April, 1900, p. 25
Illustrated Catalogue of Photographic Equipments and Materials for
Amateurs, The Anthony & Scovill Co. (New York, NY), June, 1901, p.
26
